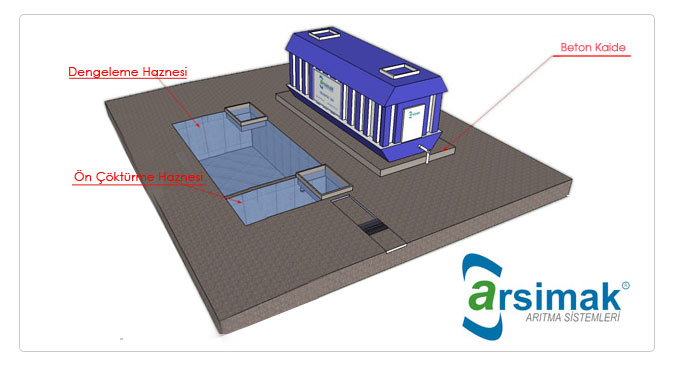

Application / Installation




Paket Arıtma Ünitesi




PreSettling Basin


   Presettling basin separates solid and oil from wastewater, increases the effiency of the system and avoids the damage of mechanical components of system .

Equalization Basin


   Wastewater is collecting in the equalization basin for reducing affects of chemicals. Helps equalization for average pollutant rates. Collects needed amount of wastewater for SBR (Sequencing Batch Reactor) Process

 PROSEPTIC® Compact Domestic Wastewater Treatment Unit


   PROSEPTIC® compact domestic wastewater treatment plants designed with, a fill and draw activated–sludge treatment system, SBR ( Sequencing Batch Reactor ) activated sludge process. The Sequencing Batch Reactor (SBR) is an activated sludge process designed to operate under non-steady state conditions - % 90 less capacity changing. SBR tank carries out the functions of 3 phase, equalization aeration and sedimentation in a time sequence in the same tank.     PROSEPTIC® treats domestic wastewater biologically by aeorobic microorganisms. Organic substances in wastewater is converting to carbon dioxide, water and other metabolic products all called as activated sludge which contains active microorganisms. SBR process technology integrated with PLC automation in PROSEPTIC®

Project Samples


   Paket Arıtma Sistemleri     Paket Arıtma Proje Örneği

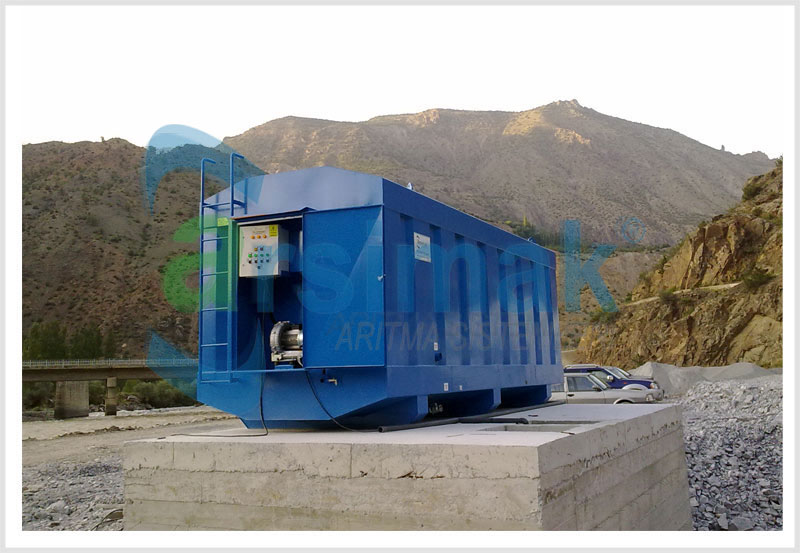

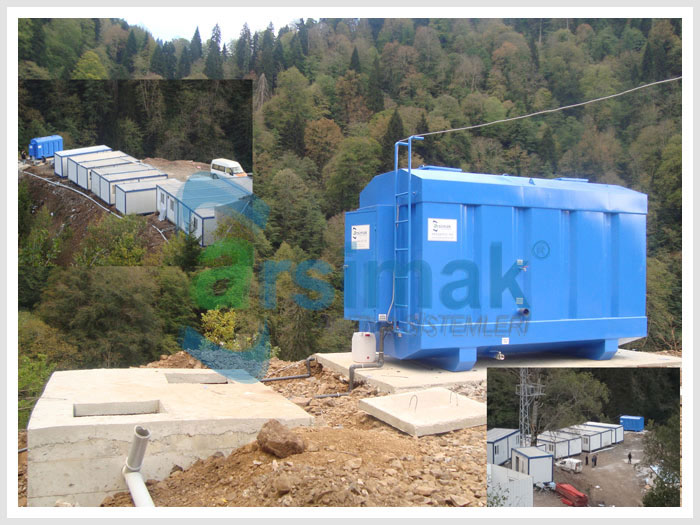

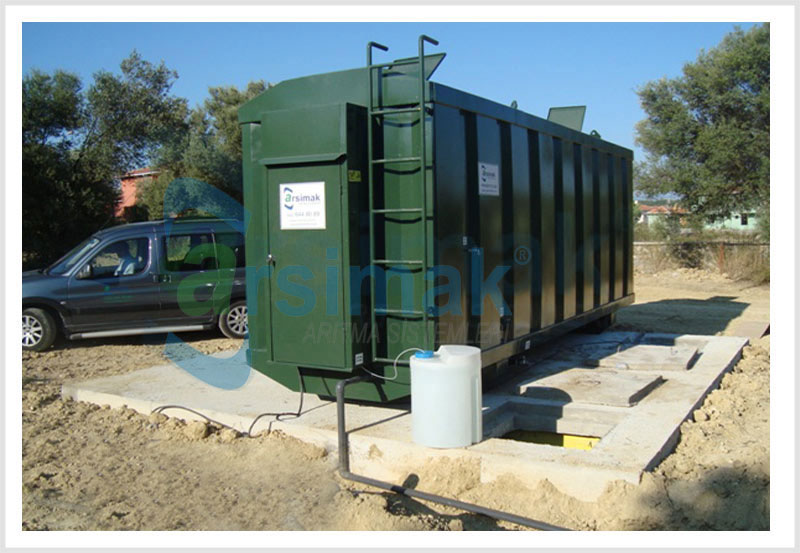

Application Samples

Paket Arıtma Filtrasyon Uygulama Örneği
Concrete Biological Treatment
Paket Arıtma Uygulama Örneği
Concrete Biological Treatment

Paket Arıtma Sistemleri Örneği
Concrete Biological Treatment


Paket Arıtma Uygulama Örneği
Concrete Biological Treatment
Paket Arıtma
Concrete Biological Treatment
